Electric Guitar Amplifier - Mesa Boogie Triple Rectifier + 4x12" Oversize Cabinet

large detail images:

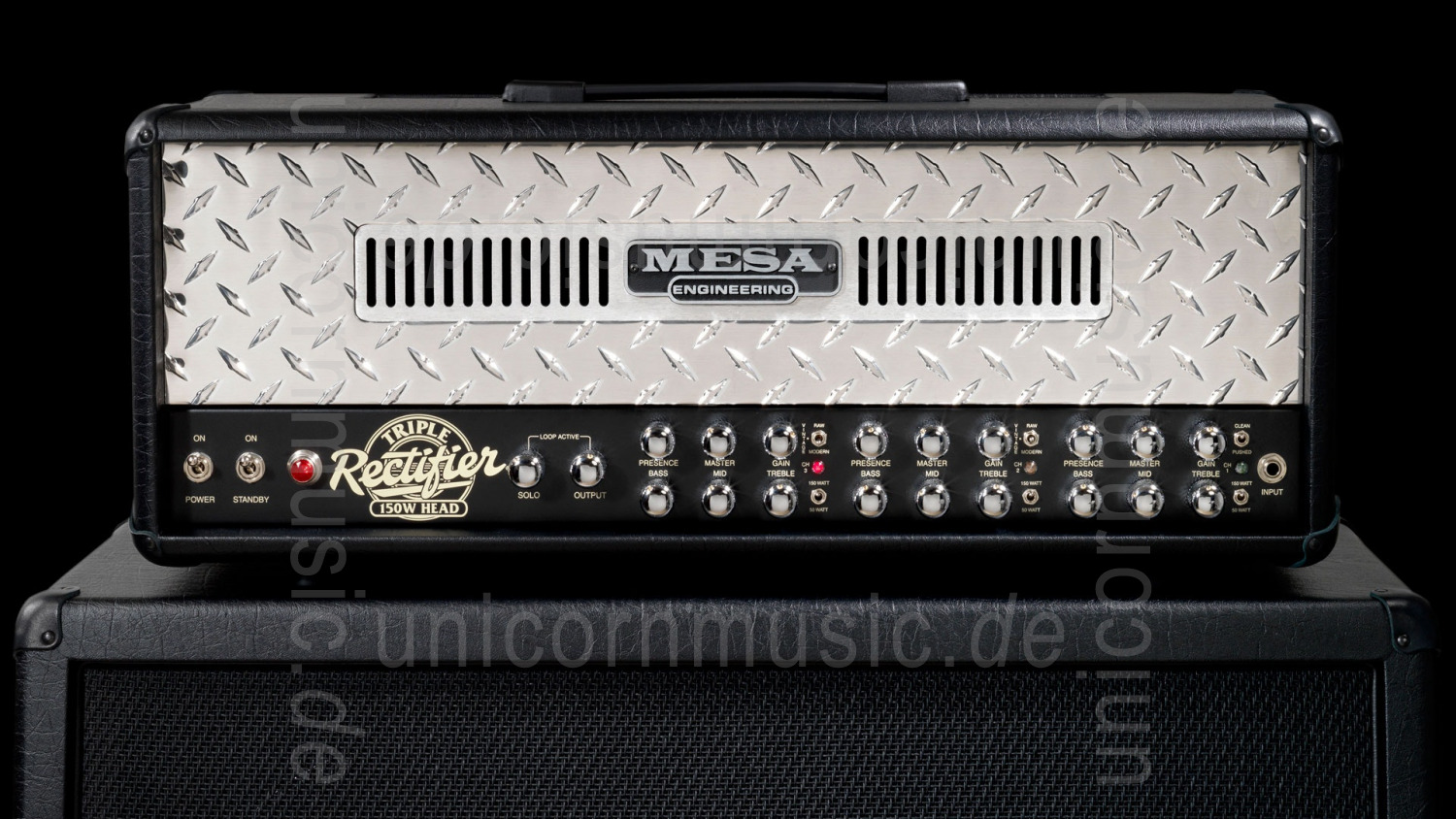

det-triple_rectifier_head_front.jpg triple_rectifier_head_back.jpg triple_rectifier_Head_frontpanel.jpg triple_rectifier_head_rearpanel.jpg triple_rectifier_Cab_front.jpg triple_rectifier_Cab_angle.jpg
Large view Electric Guitar Amplifier - Mesa Boogie Triple Rectifier + 4x12" Oversize Cabinet

not available - not available

This article is currently not available!!
Click on this link for similar offers


It’s been over twenty years, two generations of guitarists and several musical trend-cycles since the Dual Rectifier® first unleashed its crushing wall of gain on radio. The Triple Rectifier® takes the world famous platform to a new level of power dominance.

A decade ago both of our famous Recto®’s underwent a massive facelift that greatly expanded their versatility, moving from 2 Channel amps aimed squarely at high gain only – to 3 Channel amps capable of roaming any style confidently. Still delivering the widest, deepest footprint in heavy music, both the Recto®’s now serve a long list of chart topping devotees both in and outside the world of heavy.


Each channel on the Triple Rectifier features independent wattage controls quickly accessed via the second two-position mini toggle on each of the amp’s three channels. The Recto®’s Multi-Watt™, channel assignable power amp (Patent 7,602,927) allows each channel to be independently set at 50 or a crushing 150 watts of power. Essentially you now have the power to harness either 2 or all 6 power tubes to each channel for power ratings of 50 or 150 Watts of class A/B power via the independent 50/150 Watt Power Switches.

Tube compliments include 6x6L6 (or 6xEL-34), 5x12AX7 and 3x5U4. Our Bias Select switch (6L6/EL34) offers Fixed Bias for consistent, maintenance free performance.


We’ve unearthed a lot of secrets in the last two decades and we’ve used them all in this latest rendering of the Triple Rectifier®. 8 sound modes across 3 channels are now on tap. The improved CLEAN and PUSHED sounds found in the Triple Rectifier's Channel 1 are based on the popular Lone Star® and Mark V® and offer a full-bodied, well-balanced clean signal - a perfect starting point for shaping your ideal clean tone.

MESA/Boogie®’s contribution to modern heavy rock and metal cannot be denied. On the lower end of gain, in both Channels 2 and 3, RAW mode offers an excellent classic-rock style sound. A smooth progressive transition away from the higher end of RAW, VINTAGE takes over offering a fluid tonal transition headed straight toward metal mayhem. Channel 3 delivers a wish list of what heavy aficionados might expect from the original engineers of cascading gain. Switching from VINTAGE to MODERN, fuels an inferno with increased low end, a boost in the high Mids and an aggressive bite unlike any other.


The SOLO and OUTPUT knobs on the Triple Rectifier are only active when the FX Loop is engaged. The SOLO knob adds extra boost for lead work, and it can be activated anytime quickly via the SOLO button on the footswitch. The OUTPUT knob controls the overall amp volume, and it’s ready for action after you have balanced every channel’s GAIN and MASTER volumes to meet your taste.


Each Channel features Multi-Watt Power Switch (50/150 Watt), Independent Gain, Treble, Mid, Bass, Presence, Master, Channel Assignable Dual Rectification with Recto Tracking™ (Diode or Tube Tracking Patents 5,168,438 & 7,193,458). Tube Tracking further compresses sound in a very clean subtle manner. If more headroom is needed, Diode rectification is an alternative option for tighter low-end tracking.


Our footswitchable, fully buffered FX Loop features two jacks (Send and Return), a Send Level knob, and a five-position rotary Assign control (for bypassing the loop or assigning it to any or all channels) allowing seamless integration with outboard effects processors from the Recto’s footswitch.

  • Amplifier:
  • Type : 3x Channel 8 Modes
  • Power: Channel Assignable 50 or 150 Watts
  • Rectifier Tubes: 3x Mesa 5U4
  • Preamp Tubes: 5x Mesa 12AX7
  • Power Amp Tubes: 6x Mesa 6L6 (or EL-34)
  • Hand-Wired In Petaluma, CA with the World's Finest Materials
  • Footswitch Included: 6 Button Footswitch (Bottom Row: Ch. 1, Ch. 2 & Ch. 3 - Top Row: Tuner Mute, FX Loop & Solo)
  • Mode Voicings / Styles: Ch. 1 = Clean or Pushed / Ch. 2 = Raw, Vintage High Gain or Modern High Gain / Ch. 3 = Raw, Vintage High Gain or Modern High Gain
  • Speaker Outputs: 1x 16 Ohm / 2x 8 Ohm / 2x 4 Ohm
  • Effects Loop & Bypass Options: Fully Buffered Series FX Loop w/Send Level Control - Footswitchable, Channel Assignable or True Bypassable
  • Dimensions: 10" H x 25 1/2" W x 9 7/8" D
  • Weight: 22 kg
  • Voltage: 230V

  • Cabinet:
  • Type : 4x12" closed back
  • Speaker: Celestion Vintage 30s / Rear Mounted
  • Power Handling: 240 Watts
  • Impedance: 8 Ohm Mono / 4 Ohm Stereo
  • Casters Included: Track-Loc™ Removable Casters
  • Weight: 50kg
  • Dimensions: 83,5 x 76,5 x 36,2 cm HxWxD
